Cassette Blind Measuring Guide

Rulo produces cassette blinds with C-type side profiles. The cassette is mounted on the window frame using screws. When taking measurements, the type of glazing bead must first be determined. For a square glazing bead (not at a sharp angle), the cassette side profiles can be attached to the glazing beads using tape. For a curved or sharply angled glazing bead, the cassette side profiles must be mounted with tape 8 mm away from the line of the window frame and the glazing bead.

• L1 - width from glazing bead line\
• H1 - height from glazing bead line\
• L2 - glass width\
• H2 - glass height

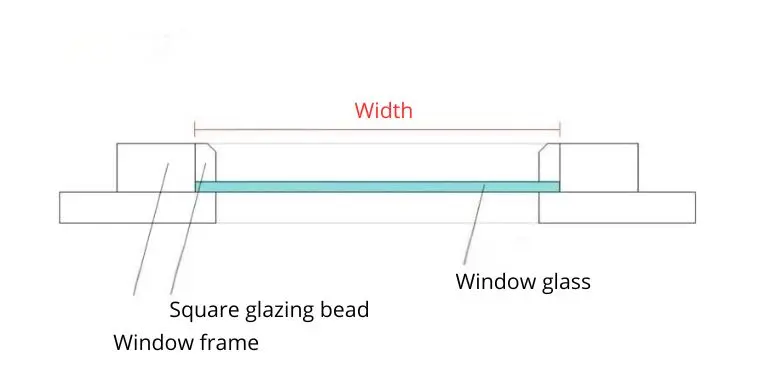

Cassette Blind Measuring Guide (square bead)

• L1 - Width from the line of one glazing bead to the line of the opposite glazing bead
• L2 - Glass width without the black glazing seal
• H1 - Height from the line of one glazing bead to the line of the opposite glazing bead
• D1 - Depth of the glazing bead from the window frame surface (see drawing)

If unsure, send us a photo of the window opening (info@rulo.ee) so we can provide more accurate guidance for your Cassette Blind.

Cassette Blind Measuring Guide (curved bead)

• L1 + 16 mm -- Width from the line of one glazing bead to the line of the opposite glazing bead, with an additional 8 mm on each side for mounting the cassette side profiles

• L2 -- Glass width without the black glazing seal

• H1 -- Height from the line of one glazing bead to the line of the opposite glazing bead

• D1 -- Depth of the glazing bead from the window frame surface (see drawing)

If unsure, send us a photo of the window opening (info@rulo.ee) so we can provide more accurate guidance for your Cassette Blind.
